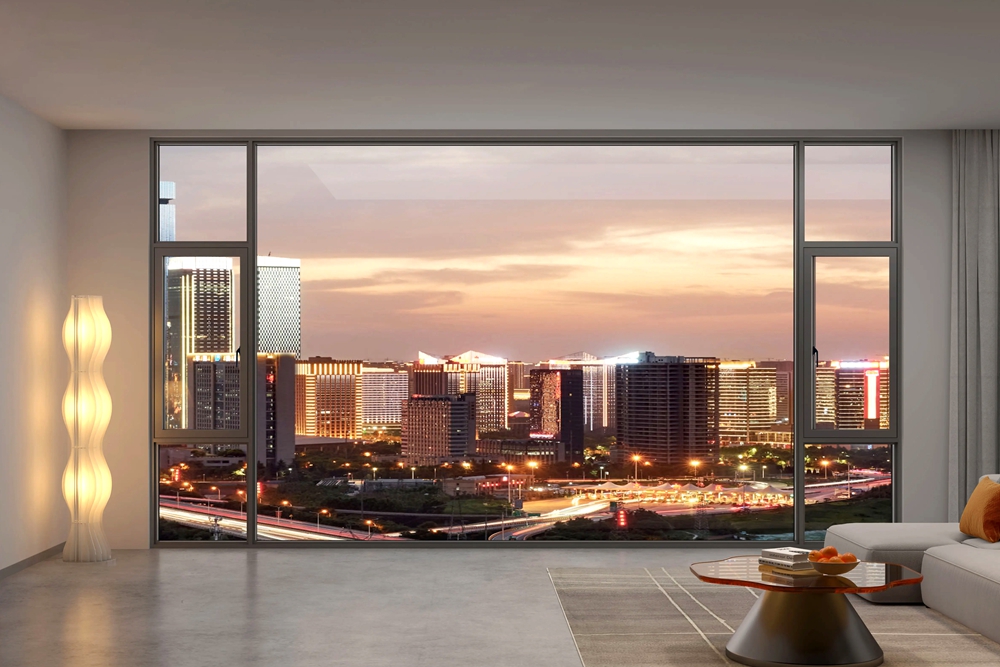

SCHÜPARD presents the Da Vinci・Skyline 103 Series Thermal Break Aluminum Narrow Side-mounted Screen Integrated Window. As a specialized minimalist narrow frame window manufacturer, we design this series for stability and performance. The frame width measures 70.5mm, providing a solid foundation for the structure. The aluminum profile has a thickness of 1.8mm. This dimension ensures the window remains rigid and durable under various conditions.
The glazing system focuses on insulation. The unit features double tempered glass filled with argon gas. The configuration includes two 5mm glass sheets separated by an 18mm air gap (5mm+18A+5mm). A standard insulated spacer sits between the glass panes. We also use a 34mm wide polyamide fiber thermal break strip. This narrow frame aluminum screen integrated window reduces heat transfer effectively.
Hardware components prioritize security and operation. The window utilizes imported Savio handles, available in black or silver, alongside durable Savio hinge sets and built-in screen mesh. For safety, ultra-slim side-mounted frame creates minimalist building appearance, and the system includes metal R-corner anti-collision protection to prevent collision injuries around the sash edge.
Users can operate this model as side outward opening window for wide landscape view and anti-mosquito function.
This product meets standard international standards. The Da Vinci・Skyline 103 Series holds CE and ISO9001 certifications. Optional customized packaging is available upon request. The Da Vinci・Skyline 103 Series is a reliable choice for minimalist high-end residential projects.
The Da Vinci・Skyline 103 Series are minimalist narrow side-mounted screen integrated system windows under SCHÜPARD.
Adopts narrow side-mounted outward opening design with built-in screen mesh, ultra-slim outer frame for minimalist facade; sash with metal R-corner to avoid bump injuries for families.
Made of 6063-T5 virgin aluminum alloy, wall thickness 1.8mm, frame depth 70.5mm. Fitted with Savio imported hardware, Nanbo insulated glass and 34mm polyamide thermal strips. Suitable for high-end minimalist residential projects.
Custom sizes available to match your openings. Optional Low-E glass, safety laminated glass, surface colors and handle styles.
5- cavity equal-temperature energy-saving structure with standard multi-layer waterproof design, effectively reducing heat exchange and improving sound insulation.
Compliant with ISO9001, CE and national aluminum window standards; complete third-party performance test reports can be provided.
SCHÜPARD is a professional aluminum window manufacturer with our own factory in Suzhou. We offer drawing design, 3D rendering and bulk order arrangement for global clients.
10-year warranty for aluminum profiles, 10-year warranty for hardware, screen mesh and accessories.
Online technical support, installation guidance and long-term spare parts supply for overseas partners.
The side outward opening sash is designed with a metal R-corner protection structure, which reduces direct collision risks during daily use. This detail helps create a safer indoor environment for families, children and elderly users.
This window adopts side outward opening narrow frame structure with integrated screen mesh, ultra-slim outer frame brings larger glass area and wide landscape view, matching modern minimalist decoration style. The operation remains simple and stable, making daily air exchange more convenient.
The window is equipped with double tempered insulated glass together with 34mm wide polyamide thermal break strip, which helps reduce noise transmission and greatly improve heat preservation performance. The glass unit works together with the five-cavity thermal break profile to lower heat transfer.
EPDM sealing gaskets are applied around the sash and frame, helping improve air tightness and water tightness. This structure reduces the possibility of air leakage and rainwater seepage.
Parameter | Details |
Product Model | Da Vinci · Skyline 103 Series Thermal Break Aluminum Narrow Side-mounted Screen Integrated Window |
Manufacturer | SCHÜPARD |
Opening Style | Side Outward Opening with Built-in Screen Mesh |
Frame Width | 70.5MM |
Profile Thickness | 1.8MM |
Glass Specification | Double Tempered Glass with Argon Gas (5mm+18A+5mm) |
Glass Spacer | Aluminum Insulated Spacer |
Insulation Strip | 34mm Polyamide Fiber Thermal Break Strip |
Locking System | Multi-point Lock System |
Handle Hardware | Imported Savio Handle (Black and Silver) |
Hinge Hardware | Savio Hinge |
Screen Mesh | High-transparent Stainless Steel Insect Mesh |
Certifications | Meets CE and ISO9001 standards |
Optional Packaging | Customized Pack Available Upon Request |
