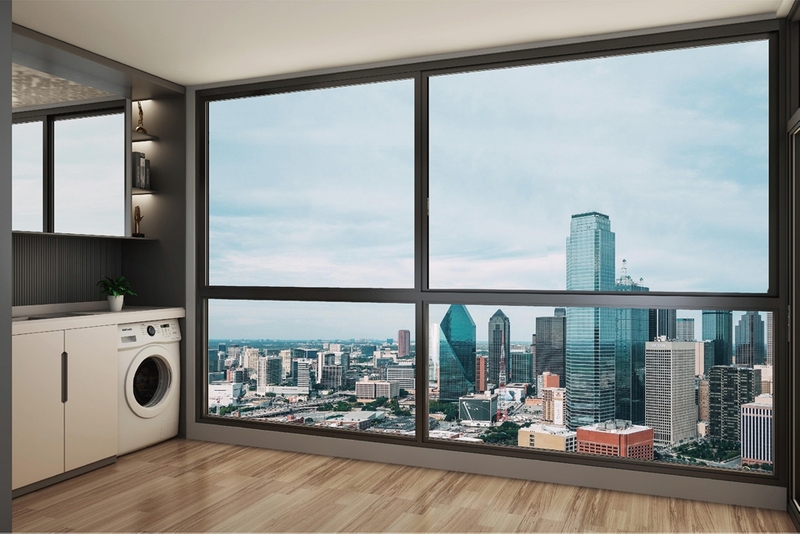

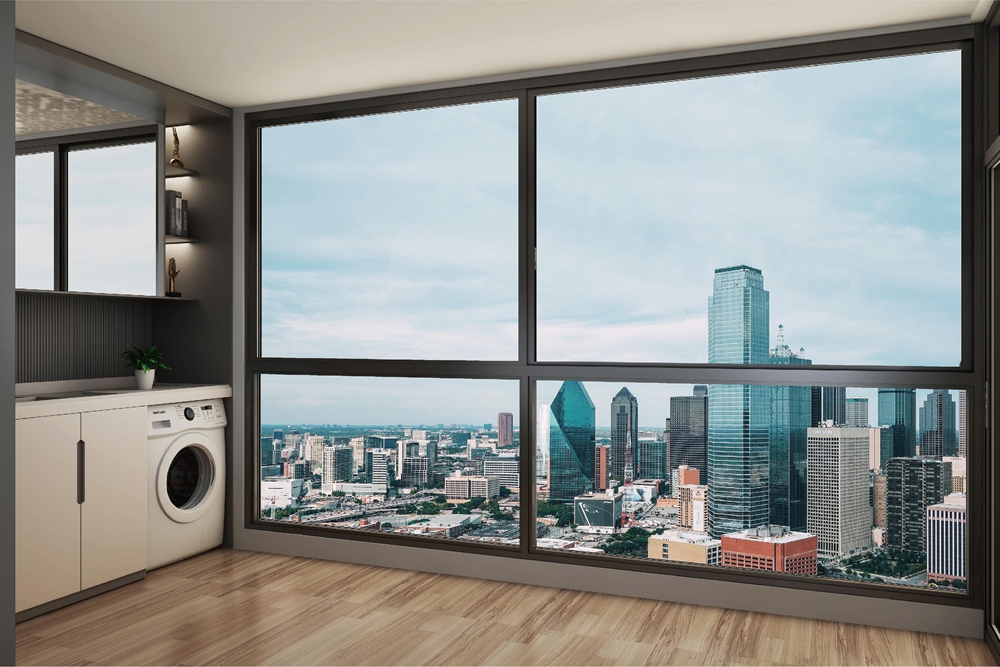

Yijing · Xianxiang 120 Maglev Landscape Sliding Window Manufacturer

SCHÜPARD presents the Yijing · Xianxiang 120 Maglev Series Thermal Break Aluminum Landscape Sliding Window. As a premium sliding window innovator, we introduce magnetic suspension technology to deliver an unparalleled sliding experience. The frame width measures 120mm with minimalist slim profile aesthetics. The aluminum profile has a thickness of 1.8mm using 6063-T5 virgin aluminum, combining structural reliability with refined visual elegance.

The glazing system complements the minimalist design philosophy. The unit features Nanbo double tempered glass with 5mm+14A+5mm configuration. A standard insulated spacer sits between the glass panes. A 20mm multi-cavity polyamide fiber thermal break strip is integrated within the 4-cavity profile structure. This maglev aluminum sliding window achieves balanced thermal performance while prioritizing the ultra-sleek visual experience that defines modern minimalist architecture.

The maglev hardware system represents the pinnacle of sliding window technology. The window features SCHÜPARD custom magnetic suspension sliding system, enabling the sash to glide with near-frictionless smoothness and whisper-quiet operation - a significant upgrade from conventional track sliding. Each movement feels effortless and precise. Hidden drainage system maintains a seamless, clean exterior appearance. 90-degree screw-connected corner joints ensure structural precision and long-term durability. Built-in insect screen option is available for selected configurations.

This product represents the premium tier of modern sliding window design. The Yijing・Xianxiang 120 Maglev Series holds CE and ISO9001 certifications. Fully bespoke customization caters to high-end minimalist architectural requirements. The Yijing · Xianxiang 120 Maglev Series is the ultimate choice for luxury minimalist residences, designer floor-to-ceiling windows and projects demanding the finest sliding window experience.

Product Type

The Yijing · Xianxiang 120 Maglev Series are premium magnetic-suspension landscape horizontal sliding system windows under SCHÜPARD, featuring ultra-smooth silent sliding technology.

Design & Operation

Magnetic suspension sliding technology delivers ultra-smooth, silent and effortless sash movement. Minimalist narrow-frame design for maximum landscape view, perfect for high-end minimalist balcony and floor-to-ceiling window projects.

Material & Profiles

6063-T5 virgin aluminum alloy, 1.8mm wall thickness, 120mm frame depth. With SCHÜPARD custom maglev sliding hardware system, Nanbo double glazing and built-in screen mesh option. Fit minimalist luxury residential and high-end balcony projects.

Customization

Bespoke large sizes, multiple sash configurations, built-in screen mesh option, premium glass upgrades and minimalist color finishes available.

Energy Efficiency

4-cavity energy-saving structure with hidden drainage design, 20mm thermal break strips balancing minimalist aesthetics and thermal insulation performance.

Certifications

ISO9001, CE certified, Grade 8 wind resistance, Grade 5 air tightness, Grade 4 water tightness; maglev sliding window performance test reports provided.

Manufacturer Capabilities

SCHÜPARD manufactures maglev sliding windows in Suzhou factory, offering high-end residential project consultation and premium custom delivery service.
