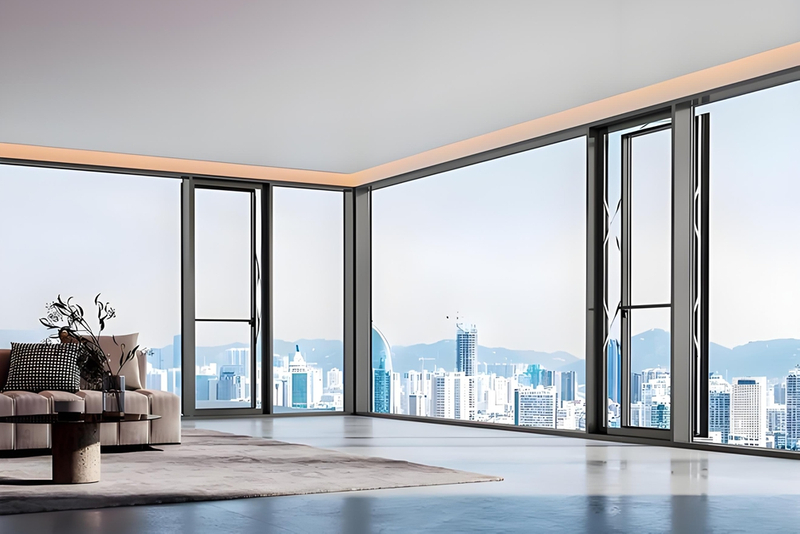

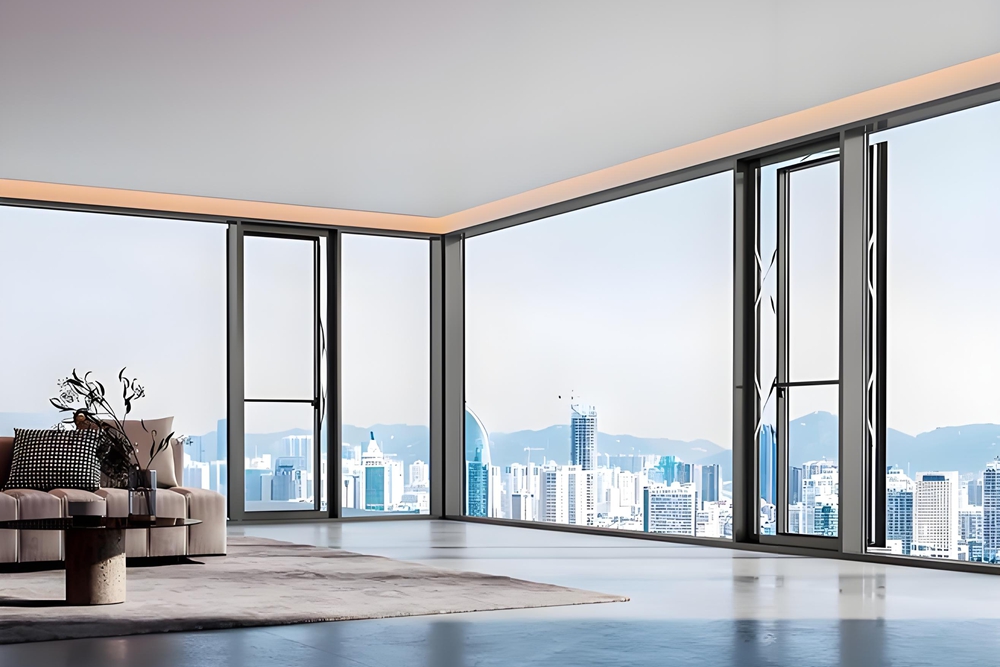

SCHÜPARD presents the Yijing · Xianxiang122 Designer Series Thermal Break Aluminum Parallel Sliding Casement Window. As an innovative premium window manufacturer, we introduce this groundbreaking parallel-opening design. The frame width measures 122mm with a substantial architectural profile. The aluminum profile has a thickness of 2.0mm. This robust construction ensures structural stability while enabling the unique parallel sliding mechanism.
The glazing system delivers premium thermal performance. The unit features Nanbo double tempered glass with 5mm+18A+5mm configuration. A high-grade insulated spacer separates the glass panes. We incorporate a 25mm PA66GF25 glass-fiber reinforced polyamide thermal break strip within the 5-cavity isothermal profile structure. This designer aluminum window achieves well-balanced thermal efficiency with a U-value of 2.2 W/(m²·K).
Hardware represents the core innovation of this series. The window is equipped with premium G-U (Gretsch-Unitas) parallel sliding hardware system from Germany, enabling the sash to slide horizontally outward in parallel motion. This unique opening achieves 360-degree perimeter ventilation without any inward protrusion. Equal-pressure drainage system ensures reliable water tightness, while pin-injection corner crimping guarantees long-term structural integrity.
This product represents a designer-grade architectural window solution. The Yijing · Xianxiang122 Designer Series holds CE and ISO9001 certifications with Grade 9 wind resistance. Fully bespoke customization options cater to premium architectural requirements. The Yijing · Xianxiang122 Designer Series is the signature choice for luxury residences, showcase properties and contemporary architectural projects seeking distinctive window design.
The Yijing・Xianxiang122 Designer Series are premium parallel sliding casement system windows under SCHÜPARD, featuring innovative horizontal push-pull opening mechanism.
Innovative parallel sliding opening design. Sash slides horizontally outward without inward protrusion, saving interior space while achieving full perimeter ventilation. A designer-favorite modern architectural window solution.
6063-T5 virgin aluminum alloy, 2.0mm wall thickness, 122mm frame depth. With G-U (Gretsch-Unitas) hardware, Nanbo double glazing, 25mm PA66GF25 thermal break strips and pin-injection corner technology. Fit luxury residential and landmark architectural projects.
Bespoke dimensions, premium glass configurations, multiple surface finishes and hardware color options for designer-grade customization.
5-cavity isothermal energy-saving structure with equal-pressure drainage, achieving 2.2 W/(m²·K) U-value and 35dB sound insulation with PA66GF25 reinforced thermal strips.
ISO9001, CE certified, Grade 9 wind resistance, Grade 8 air tightness, Grade 6 water tightness; comprehensive performance test documentation provided.
SCHÜPARD produces designer parallel sliding windows in Suzhou factory, providing professional architectural consultation and custom project delivery.
10-year warranty for aluminum frames, 10-year warranty for G-U hardware system and all premium components.
Dedicated technical support for architectural projects and premium spare parts service for high-end clientele and global partners.
The sash slides horizontally outward in parallel motion, achieving 360-degree all-around ventilation while maintaining zero indoor protrusion for a clean interior aesthetic.
Equipped with G-U (Gretsch-Unitas) parallel sliding hardware from Germany, delivering precise operation, exceptional durability and world-class engineering quality.
5-cavity isothermal profile design with 25mm PA66GF25 glass-fiber reinforced thermal break strip, providing enhanced structural strength and thermal insulation performance.
Minimalist modern appearance with 122mm substantial frame profile, specially designed for contemporary architecture, luxury villas and showcase residential projects.
Parameter | Details |
Product Model | Yijing · Xianxiang 122 Designer Series Thermal Break Aluminum Parallel Sliding Casement Window |
Manufacturer | SCHÜPARD |
Opening Style | Parallel Sliding (Horizontal Push-Out) |
Frame Width | 122MM |
Profile Thickness | 2.0MM |
Glass Specification | Nanbo Double Tempered Glass (5mm+18A+5mm) |
Glass Spacer | High-Grade Insulated Spacer |
Insulation Strip | 25mm PA66GF25 Glass-Fiber Reinforced Thermal Break Strip |
Locking System | G-U Multi-point Lock System |
Handle Hardware | G-U Designer Handle |
Hardware System | G-U Parallel Sliding Hardware System (Germany) |
Corner Joint | Pin-Injection Corner Crimping |
Drainage System | Equal-Pressure Drainage |
Certifications | CE, ISO9001, Grade 9 Wind Resistance |
Optional Packaging | Bespoke Custom Packaging Available |
